Raw Materials to make Upvc Sliding Windows and Doors

In this blog we will learn about all the raw materials that are required to make Upvc Sliding Windows & Doors. These are also the most common type of Upvc Windows and doors that are sold in the market. They are the most economical type of Upvc Window or Door design you can make and that is the very reason most windows and doors sold are mostly sliding.

Before we start, if you plan to setup your own upvc window and door fabrication unit then you can contact us. We manufacture fully portable upvc window machines. We also provide you training and raw material suppliers contacts alongwith your purchase, so that starting a upvc window manufacturing unit becomes a easy task for you.

The frames of this kind of Upvc Windows and doors remain constant whereas the thickness of the sash changes depending on whether you are making a sliding window or door. In-case of a window sash, the width of the uPVC sash profile is less and in-case of a door sash the width of the uPVC sash profile is more.

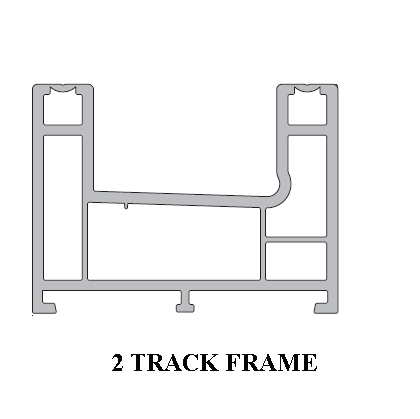

Upvc 2 Track frame
Upvc 2 Track Frame Profile remains same for making both Upvc Sliding Windows as well as Doors

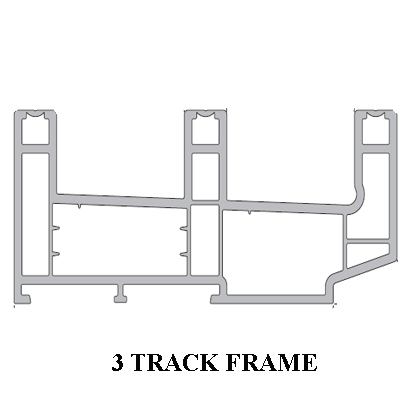

Upvc 3 Track Sliding Frame
Upvc 3 Track Frame Profile remains same for making both Upvc Sliding Windows as well as Doors
Upvc Sliding Door sash profile
Upvc sliding door sash used for making Upvc sliding doors is bigger in width than sliding window sash profile
Upvc Sliding Window sash profile
Upvc sliding window sash used for making Upvc sliding windows is smaller in width than sliding door sash profile
2 Track 2 Slider Window & Door assemby
2 Track 2 Slider window and door drawings. Both elevation as well as cross-sectional drawing are given.

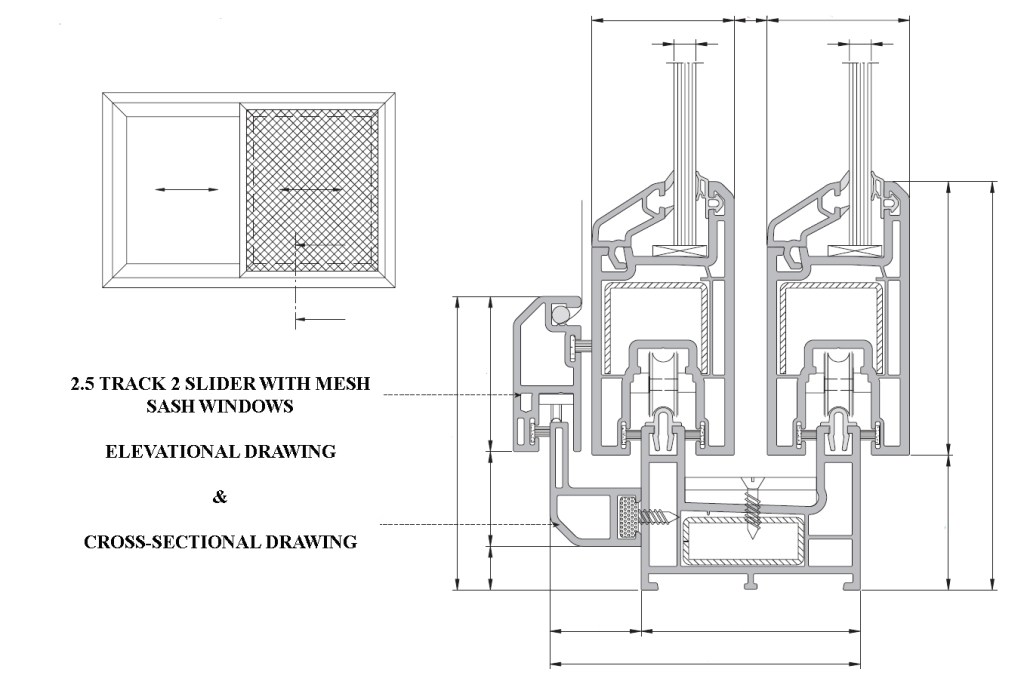

2.5 TRACK SLIDING WINDOWS WITH MESH ASSEMBLY
2.5 Track sliding windows with mesh sash (mosquito net sash). The elevation, as well as sectional drawings, are given

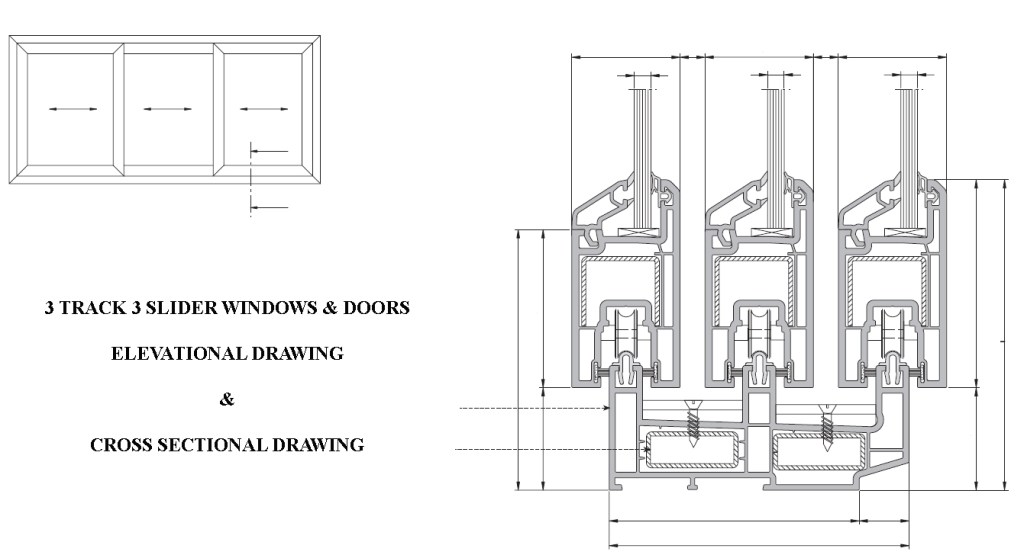

3 Track 3 Slider Window and door assembly
3 Track 3 Slider windows and doors drawing. Elevation drawing as well as cross-sectional drawing

The above-given profile designs may vary from company to company.

The most general series of profiles used to make sliding windows and doors are 60 series (for 2 Track Sliding Windows & Doors), 88 series (for 2.5 Track Sliding Windows and mesh sash) and 112 series (for 3 Track windows and doors).

Although these are commonly available series, apart from these other un-common series are also made by different Upvc Profile companies to make Upvc Windows and doors.

The window opening that a customer receives in a 2 Track or 2.5 Track sliding window or door is about 50%. Whereas, if they are using a 3 Track Window or door then the opening that they will get is upto 66%.

Customers can also be suggested to go for a 2 Track 4 Slider or a 3 Track 6 Slider window or door in case of a very wide opening aperture of the window or door area.

Glass thickness starting from 3 mm Single Glass upto 20 mm D. G. U. (Double Glazed Unit) thickness can be used in Upvc Sliding Windows & Doors.

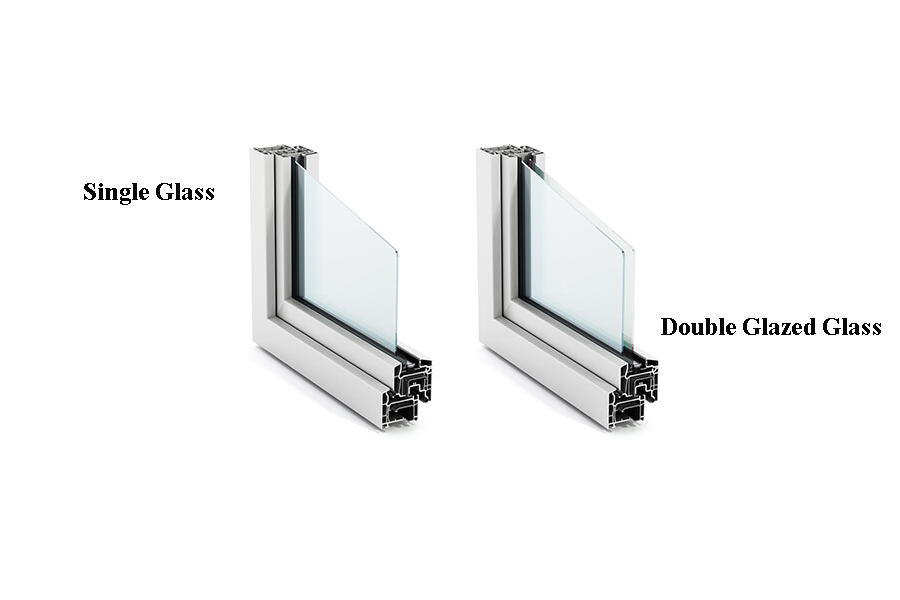

Types of glass used in upvc windows
Types of glass that can be used in windows and doors

Customer does have the option of going for Single point lock (touchlock or crescent lock) for their windows whereas they can use both single point or multi-point lock (espag) for their doors. Multi-point locks cannot be used in window sashes unless the window sash is made from a sliding door sash profile.

All hardware and hardware fixtures should be fixed using stainless steel screws to prevent any rust in the future.

Crescent Lock Moon Lock hardware for upvc windows
Crescent lock or moon lock is used in sliding upvc windows and doors as a single point lock

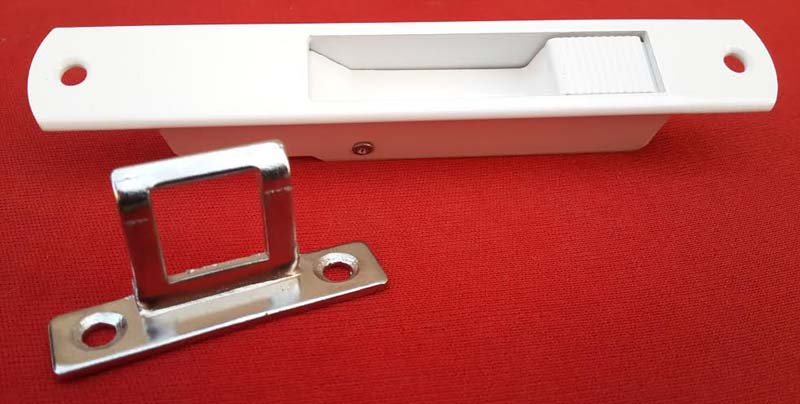

Upvc Touchlock for upvc sliding window
Touchlock is used in upvc windows and doors as a single point lock.

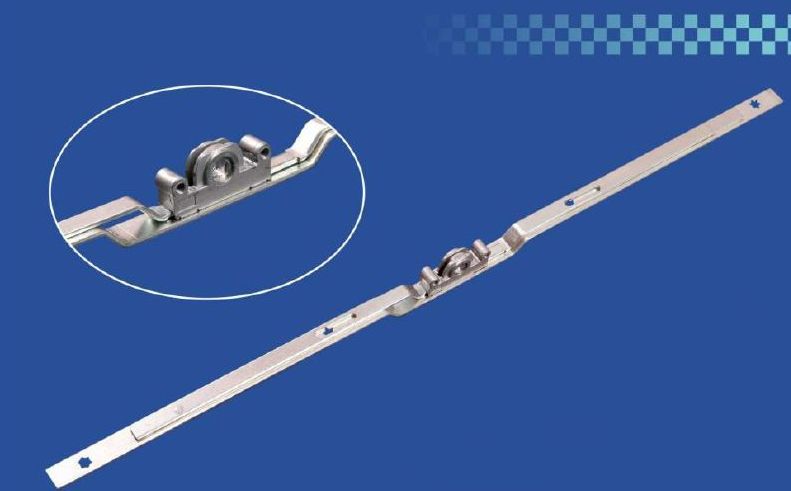

Upvc Espag for sliding doors for upvc sliding windows
Upvc espag is used with a combination of a pop-up handle in Upvc sliding doors as a multipoint lock
Upvc Popup Handle for upvc sliding doors
Upvc popup handle is used with a combination of an espag in Upvc sliding doors as a multipoint lock

For rollers, fabricators can go for Single roller or Double adjustable rollers in case of an Upvc Sliding Window and a Double adjustable door roller incase of a Upvc Sliding Door.

Single roller for Upvc Windows
Upvc Single Roller used in lightweight upvc sliding windows

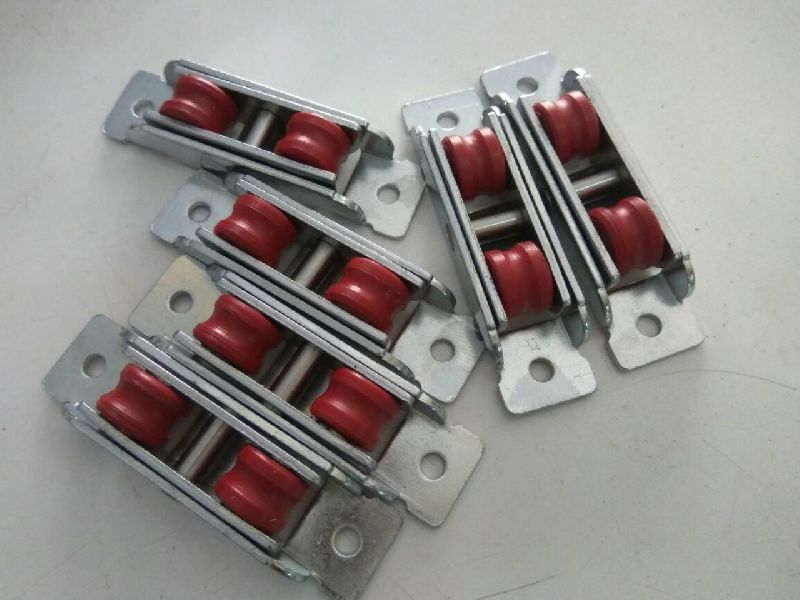

Double Adjustable Rollers for Upvc Windows
Upvc Double Adjustable Rollers are used in Upvc Sliding Windows with heavy sash weight.

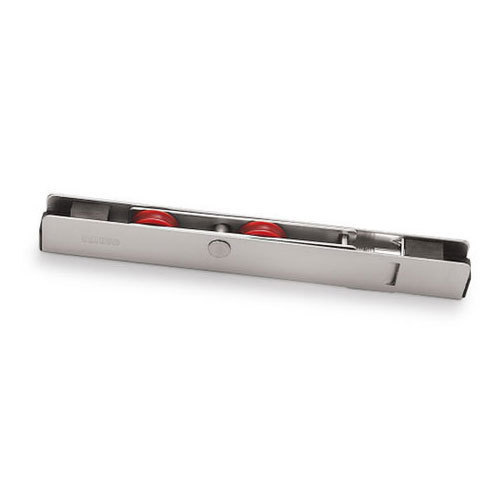

Adjustable Sliding Door Roller for Upvc Sliding Doors
Upvc Adjustable Sliding Door Roller is used in Upvc Sliding Doors

The rubber gaskets used in the Upvc Sliding Windows and doors should be of EPDM quality. There is basically three types of rubber gaskets that are used in the making of a sliding window or door.

  1. K type: Used in the Upvc Glazing bead profile
  2. O type: Used in Upvc Window & Door sash profile
  3. Round type: Used to fix the mosquito net in the mesh profile

The colour of the gasket used may vary as per availability or as per the fabricator’s choice. But the colour black is most commonly used.

K type rubber gasket for Upvc Sliding Windows
Upvc K type rubber gasket used in a glass bead of Upvc Sliding Windows & Doors

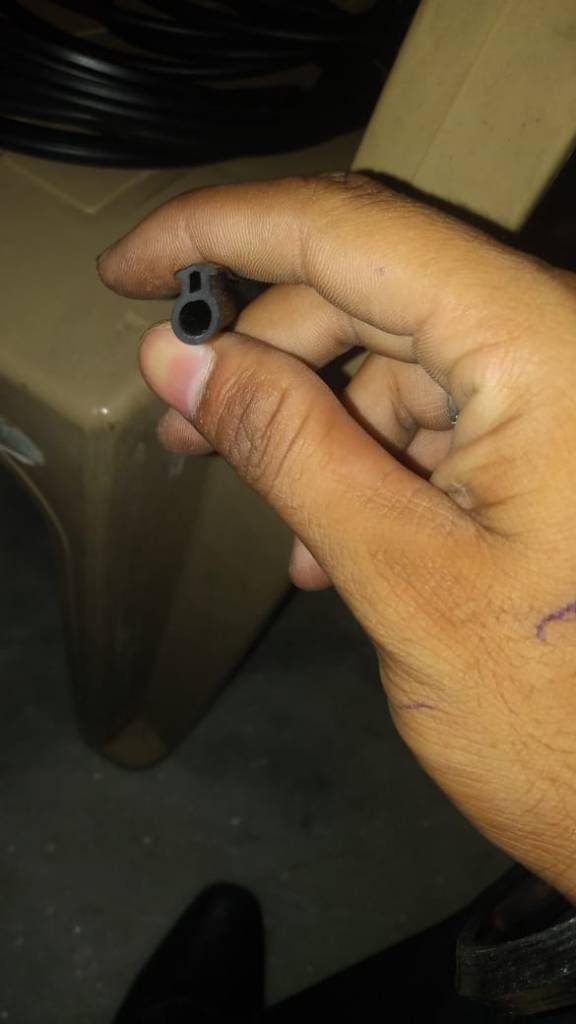

O Type Rubber gasket for Upvc Sliding Windows
Upvc O Type Rubber gasket used in Sliding Sash of Upvc Windows and doors

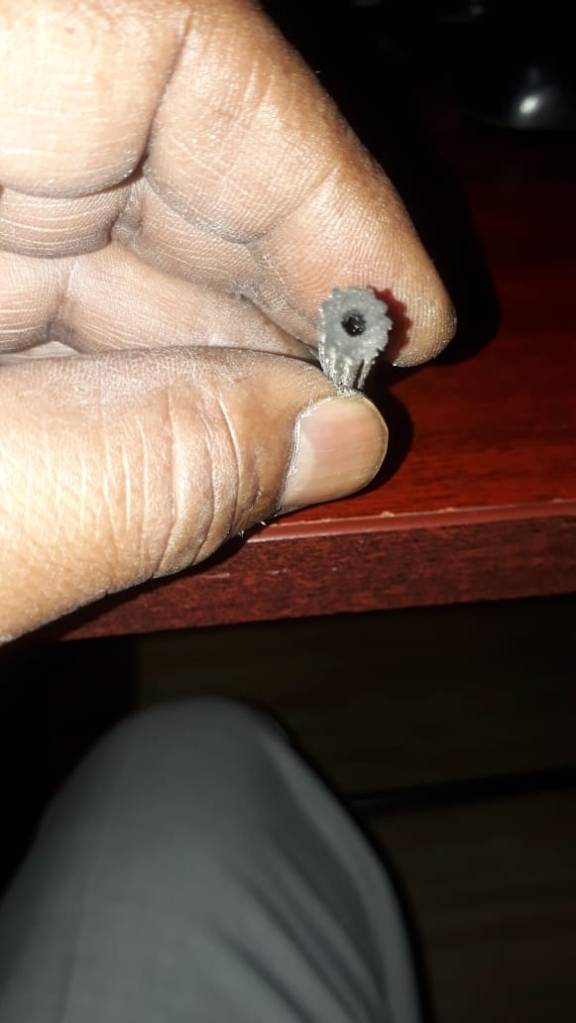

Round Rubber Gasket for Upvc Sliding Windows
Upvc Round Rubber Gasket used to fix the mosquito net in the mesh sash of Sliding Windows & Doors

If the Sliding window or door sash is too heavy then it is mandatory to use Aluminium Track on the bottom profile of the sliding frame.

Aluminium Track for Upvc Sliding Windows
Upvc Aluminium Track is used on the bottom of the Sliding Window or door frame profile

Woolpile is also used around the sliding sash to prevent it from being loose during the running of the sliding sash along with the frame profile. Again the colour of the woolpile used may vary. But the colour grey and black are the two most common colours available in the market.

The woolpile used should be preferable of silicated quality (silicone tipped) to prevent soaking of water during the rainy season.

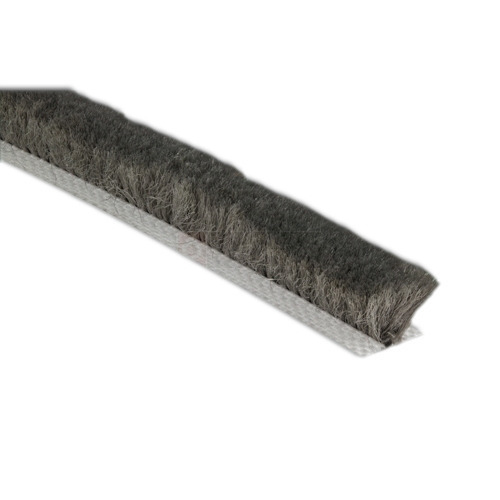

Woolpile for Upvc Windows
Upvc silicated Woolpile is used as a brush gap sealer between the sash and the frame of the Upvc Sliding Window or Door

During installation, it is recommended to use nylon capped galvanized fasteners for the fixing of the frames of the Upvc Windows and Doors.

Upvc Fasteners
Nylon capped galvanised Fasteners should be used to fix uPVC Window and door frames.

Any gaps that remain around the wall and the Upvc Frame should be sealed using a Weather Silicone of Neutral Cure preferably matching the colour of the Upvc Window Frame or of white colour.

Upvc Window silicone sealent
Upvc window should be sealed with weather silicone around the gaps between the wall and the frame.

To learn more about Upvc Window & Door making process or to setup your very own Upvc Window workshop, contact us today.
